Karcher Pressure Washer, HD 9/20-4 S St Classic

b62e14d2-61ca-4889-976d-308856ec2490.pdf
006b43db-2d36-4f83-9e75-4ad688373e36.pdf

SKU: FPK920-ST

As robust as it is powerful: the HD 9/20-4 S St Classic stationary cold water high-pressure cleaner for tough cleaning applications. Assembly, operation and maintenance that is so effortless, it's child's play.

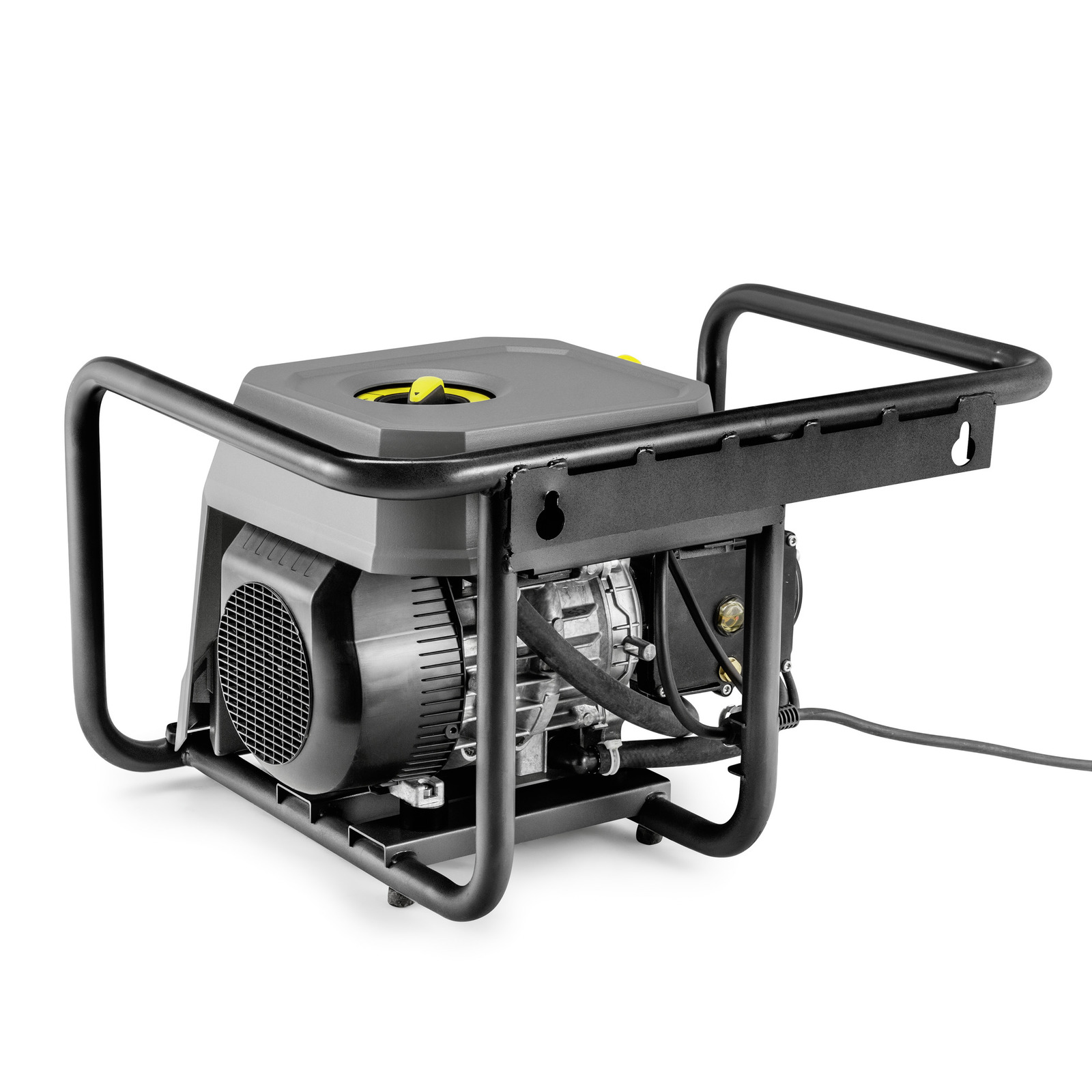

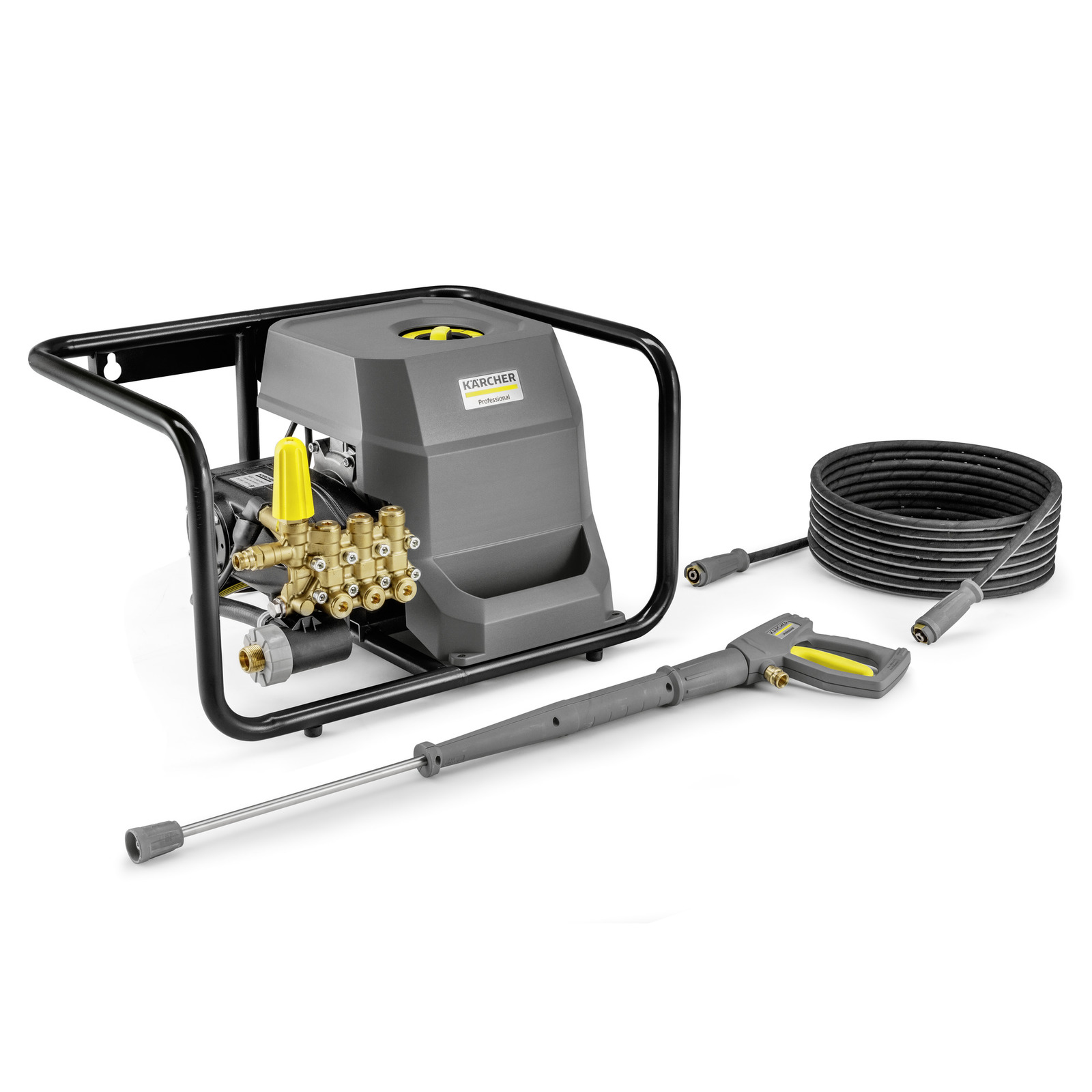

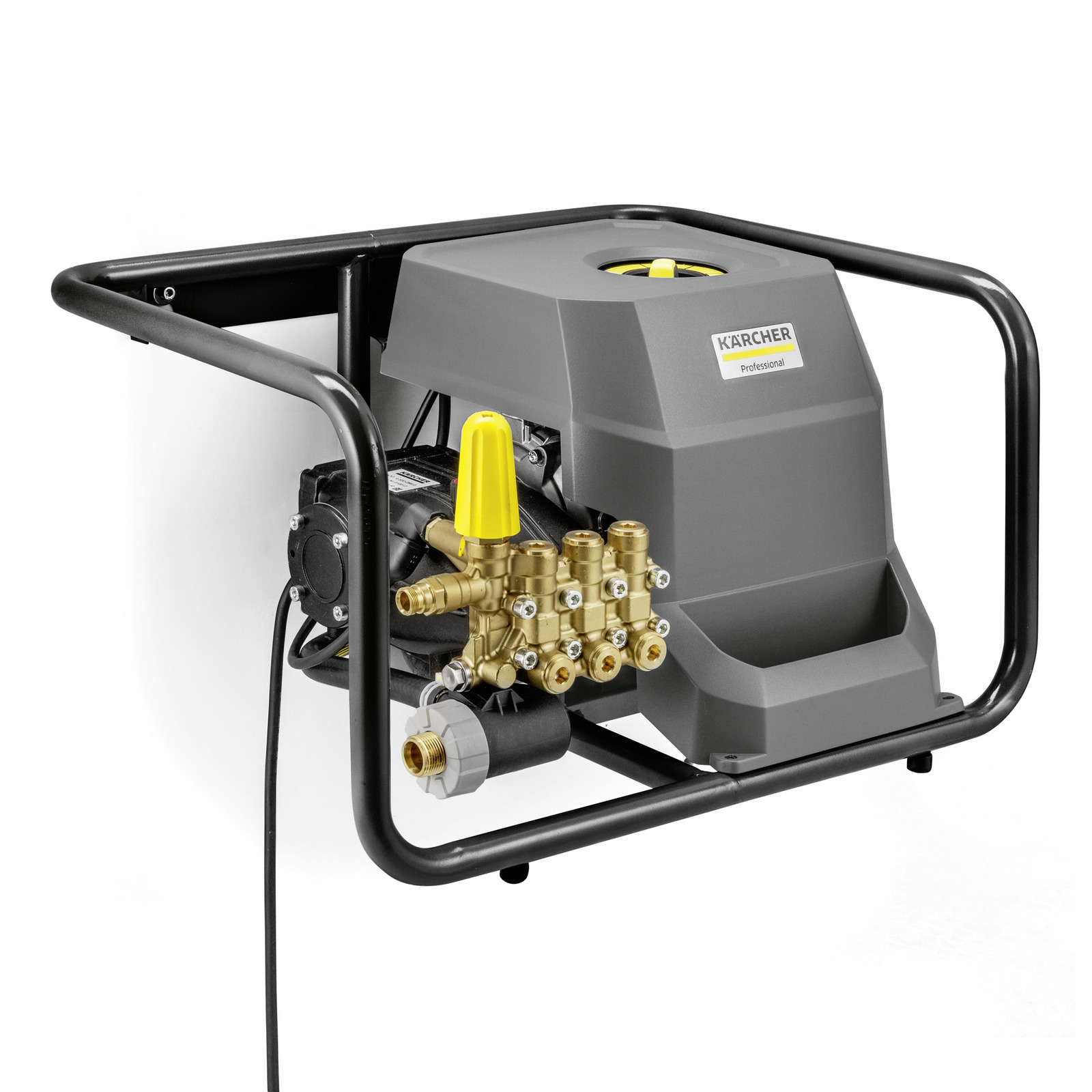

The HD 9/20-4 S St Classic cold water high-pressure cleaner designed for consistent, long-lasting and ultra-reliable operation even under the toughest working conditions. To fulfil its remit, the solidly built stationary machine is fitted with a strong, easy-to-adjust crankshaft pump with a high-quality brass cylinder head and a low-speed 4-pole motor with automatic shutoff and air/water cooling. While the pump is well-protected by a built-in and easy-to-clean water filter, the other standard equipment speaks for itself – with trigger gun, lance, 10-meter high pressure hose and a power nozzle all included in the scope of supply. For added speed and convenience, these all come with our innovative EASY!Lock quick-release couplings. For the very best cleaning performance, the machine's 7 kW motor output produces up to 200 bar of working pressure, which in turn delivers an hourly flow rate of 900 litres. And it doesn't end there; service and maintenance tasks on the HD 9/20-4 S St Classic can be completed just as quickly as installing its ultra-sturdy steel frame to the wall or floor.

Features & Benefits

• Powerful and robust crankshaft pump with brass cylinder head and pistons with ceramic sleeves - High performance and high efficiency. Long service life and low maintenance costs. With suction feature and up to 60 °C water temperature.
• Robust, stationary chassis - A robust tubular steel frame reliably protects the machine against damage. Long-lasting, robust and thus very economical machine. The sturdy pipe frame provides protection in continuous heavy-duty use.
• Classic accessories with EASY!Lock connections - Robust and durable accessories. Quick set-up and pack-up plus easy accessory replacement. Easy to use.

Application Areas

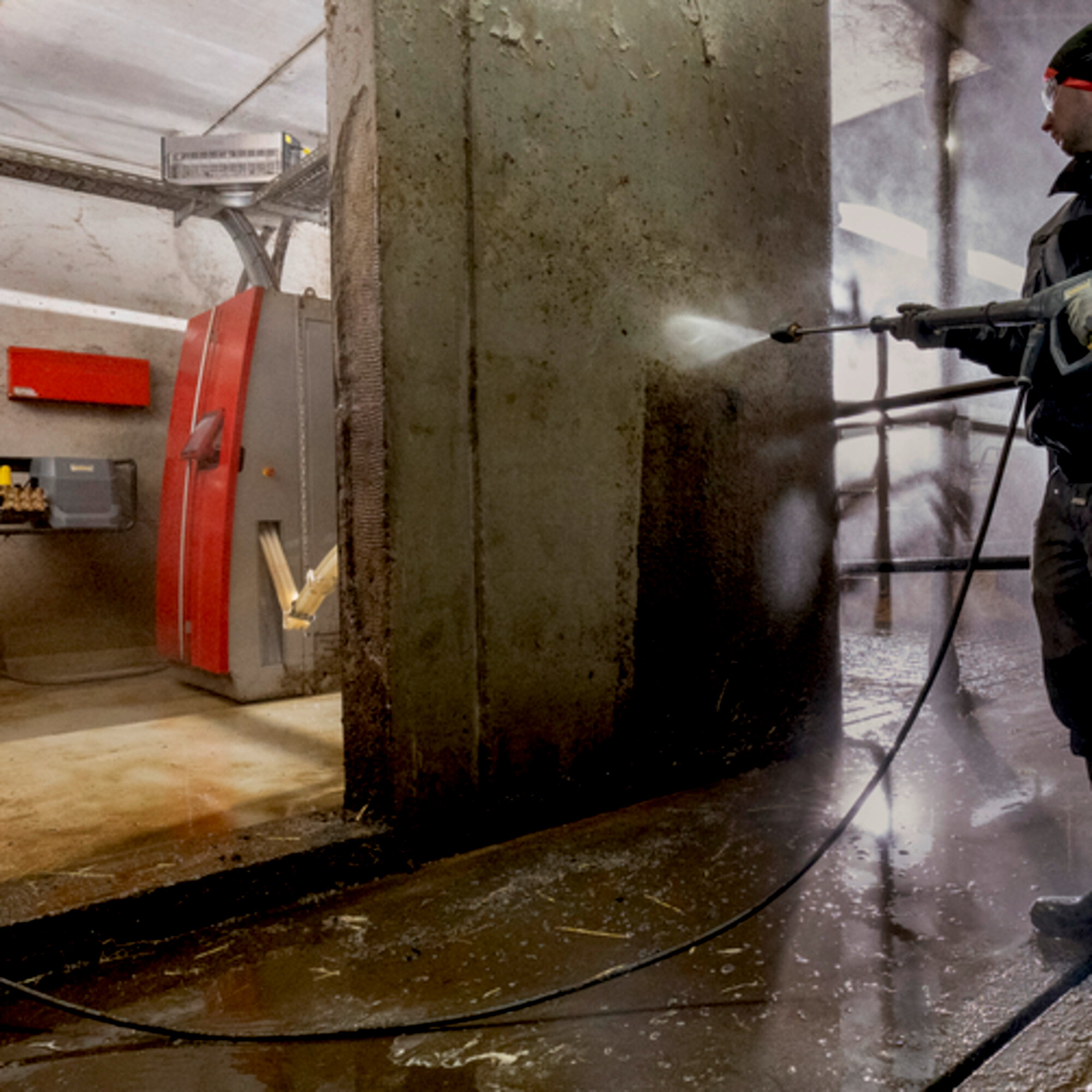

• Cleaning animal stables in agriculture
• Ideal for car dealerships, car hire companies and service stations
• Vehicle and machine cleaning in the automotive, industrial and agricultural sectors
• Cleaning tractors, machines and implements in agriculture
• High-pressure cleaning of machines and equipment in the construction, agricultural and municipal sectors
• For cleaning production halls, warehouses and logistics halls, as well as loading areas
• Ideal for diverse applications in the transport and logistics sector
• Industry
• Agriculture

Equipment

• High-pressure hose length: 10 m
• High-pressure hose specification: ID 8, 315 bar
• Spray lance: 840 mm
• Power nozzle
• Crankshaft pump with ceramic pistons
• 4-pole, three-phase motor with air and water cooling
• Pressure switch-off
• Integrated water fine filter
• Oil level indicator
• Brass water inlet

Technical data

• Supply voltage (Ph/V/Hz) - 3 / 376 - 424 / 50
• Flow Rate (l/h) - 450 - 900
• Inlet temperature (°C) - 60
• Working pressure (bar) - 50 - 200
• Max. Pressure (bar) - 260
• Connected load (kW) - 7
• Power cable (m) - 5
• Nozzle size - 047
• Water inlet - 1"
• Colour - anthracite
• Weight (with accessories) (kg) - 49.7
• Weight incl. packaging (kg) - 55.4
• Dimensions (L × W × H) (mm) - 720 x 522 x 418
